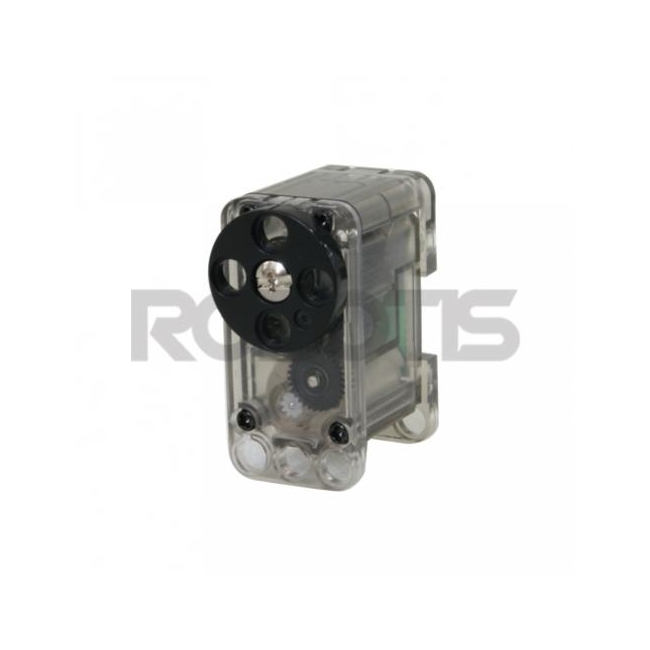

ROBOTIS Servo Motor SM-10

SKU
R-902-0018-000
Brand
Robotis
Quick Overview
This motor is used in OLLO by the CM-100 and can be controlled by controlling the port.
£22.30 £18.58

Secured and trusted checkout with

ROBOTIS Servo Motor SM-10

- This motor is used in OLLO by the CM-100 and can be controlled by controlling the port.

- By setting to rotation mode, users can make it move like the OLLO Geared Motor OGM-10. By setting it to joint mode and setting the rotation speed (strength) and position value, users can enable it to move as well.

- Used to move joints or steering device or to maintain a certain angle.

Specifications

Weight16g
Dimensions18 x 36 x 27mm(with Horn)
Gear Ratio195:1
Speed57RPM(at 3V)
Position SensorPOT
Safety DeviceClutch Installed

Includes

Servo Motor1 set
5 Pin Cable1 set

About the Robotis - CM-100A Controller

This OLLO controller can be assembled onto any other OLLO parts using rivet connection.
The controller can be programmed using the Roboplus Graphical Software suite from Robotis..

An IR Sensor, Buzzer and MIC are embedded in the controller and additional extension ports make it convenient to add on other devices.

You will need the LN-101 USB Downloader (sold separately) to program this controller.


Hardware Specifications:

  • Weight: 22g
  • Dimension: 345 x 247 x 48mm
  • Operation Voltage: 2~3.5V / Recommended 3V(AA or LR x 2)
  • Power Swtich: 1 set
  • IR Sensor: 3 direction/ total 3 groups loaded
  • Sound Sensor: Embedded
  • Power Connector: 2 sets
  • Geared Motor Port: 2 sets
  • Multi-purpose Port: 2 sets
  • Communication Port: 1 set (Connects to LN 101 USB Downloader, ZIG-110A or BT-110A)

Compatible Products:

  • Motor: Geared Motor (Max 2 sets), OLLO Servo Motor
  • Sensor: IR Sensor OIS-10, Touch Sensor OTS-10
  • Wireless Communcation: IR Receiver OIR-10 (IR wireless control), ZIG-110A or BT-110A (RF wireless control)
  • Downloader : USB Downloader LN-101

** This Controller is designed for the OLLO line of products and is not compatible with Bioloid or Dynamixel.
