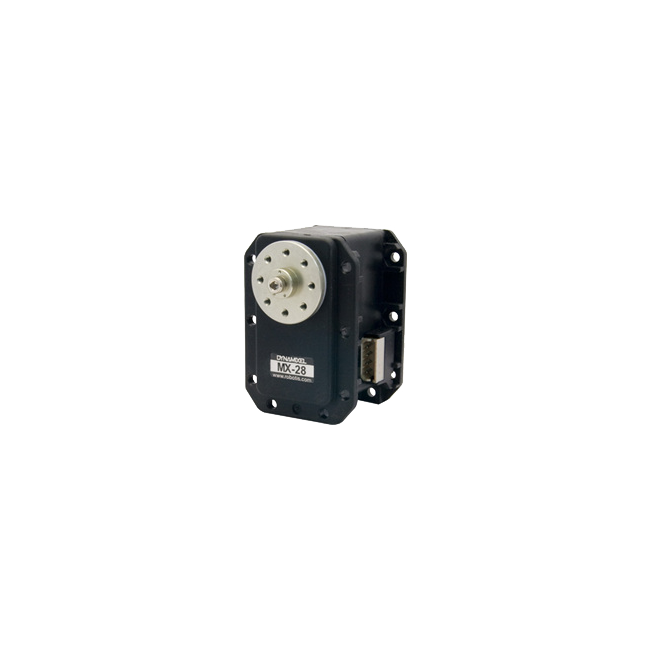

Robotis - Dynamixel MX-28T Servo (TTL)

Be the first to review this product

SKU

R-MX-28T

Brand

Robotis

Ship to

Calculate Shipping Cost

Country

State/Province

Zip/Postal Code

Quick Overview

Robotis - Dynamixel MX-28T Servo (TTL). The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution. Dynamixel Servos are connected using a Daisy Chain mechanism and are queried and controlled with an advanced Serial protocol. Over 50 Read/Write parameters are available including Position feedback, Load feedback and PID tuning.

As low as £275.30 £229.42

Secured and trusted checkout with

Details

Robotis - Dynamixel MX-28T Servo (TTL)

The Dynamixel MX Series servos feature a contactless (Magnetic) position encoder and PID control for superior accuracy and reliability. The MX series offers 12bit (4096) position resolution and can operate in the 360º range offering 0.008º resolution.

Dynamixel Servos are connected using a Daisy Chain mechanism and are queried and controlled with an advanced Serial protocol. Over 50 Read/Write parameters are available including Position feedback, Load feedback and PID tuning.


	12-bit resolution, 360º operation range with super-durability
	Precise and reliable PID control
	Maxon motor, 32-bit controller, high communication speed. The dimensions are compatible with RX and EX series servos

Specifications:

Model	MX-28T model - TTL level communication.
Weight	72g
Dimension	35.6mm x 50.6mm x 35.5mm
Gear Ratio	193 : 1
Operation Voltage (V)	10	12	14.8
Stall Torque (N.m)	2.3	2.5	3.1
Stall Current (A)	1.3	1.4	1.7
No Load Speed (RPM)	50	55	67
Motor	Maxon Motor
Minimum Control Angle	About 0.088º x 4,096
Operating Range	- Position Control Mode : 360º -Wheel Mode : Endless turn
Operating Voltage	10~14.8V (Recommended voltage : 12V)
Operating Temperature	-5ºC ~ 80ºC
Command Signal	Digital Packet
Protocol	Half duplex Asynchronous Serial Communication (8 bit, 1 stop, No Parity)
Link (physical)	TTL level Multi Drop Bus (daisy chain type connector)
ID	254 ID (0~253)
Baud Rate	8000bps ~ 4.5Mbps
Feedback Functions	Position, Temperature, Load, Input Voltage, etc.
Material	Case : Engineering Plastic Gear : Full Metal
Position Sensor	Contactless absolute encoder (Magnetic Encoder)

By default MX servos are set to ID1 and 57600bps; after purchase,
please change ID and baud rate according to your needs.

Compatible Frames and Horns	Compatibility Chart
Drawings	2D and 3D
e-Manual	http://support.robotis.com
Speed VS Torque Graph	Download Graph

Software / Control Environment

Software for Dynamixel control : ROBOPLUS - Download
C/C++, C#, Labview, MATLAB, Visual Basic et. : Library – Download

Kit contents

Description		Qty
Servo	MX-28T	1
HORN	HN07-N101	1
WASHER	Thrust Washer	1
CABLE	3P Cable 200mm	1
BOLT/NUT	Wrench Bolt M2.5*6	16pcs
	Wrench Bolt M2.5*8	1
	Wrench Bolt M2*3	10pcs
	Nut M2.5	18pcs
