FR12-S101K Set

Frame for DYNAMIXEL X-series 430 models.

Can be used by assembling on the side of the actuator

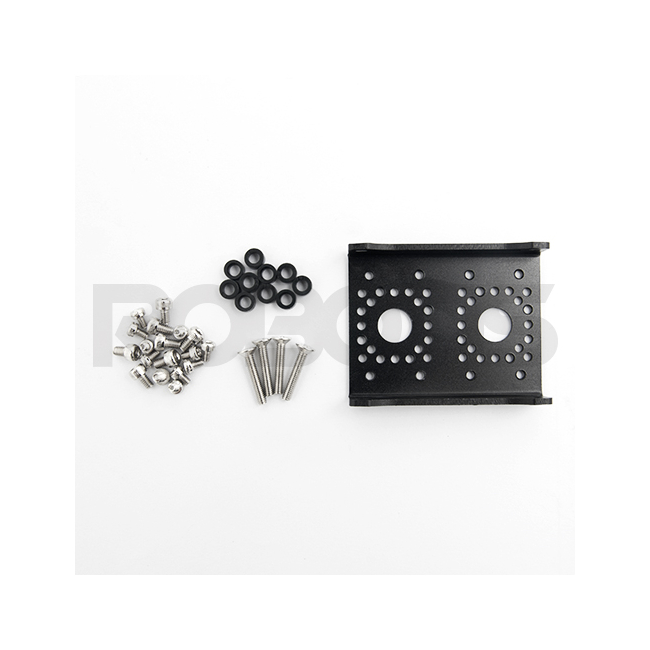

Included

• 1 x FR12-S101K Frame
• 4 x Bolt FHS M2.5x14
• 10 x Wrench Bolt WB M2x3
• 8 x Wrench Bolt M2.5x4
• 10 x Spacer Ring

Assembly Diagram

Spacer Ring usage

Downloads and Links

Dynamixel X Compatibility Chart : Click Here

Download Drawing : Click Here
